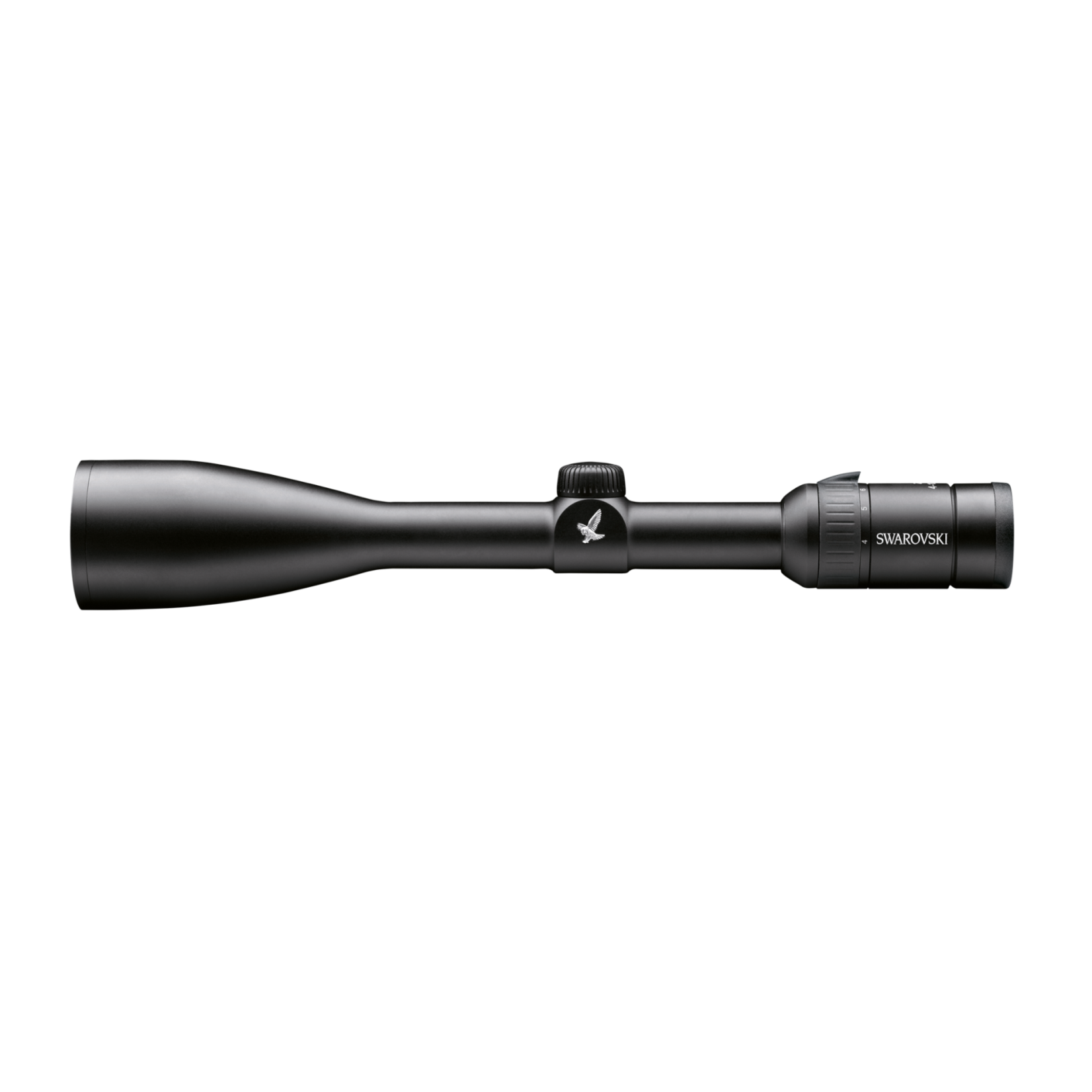

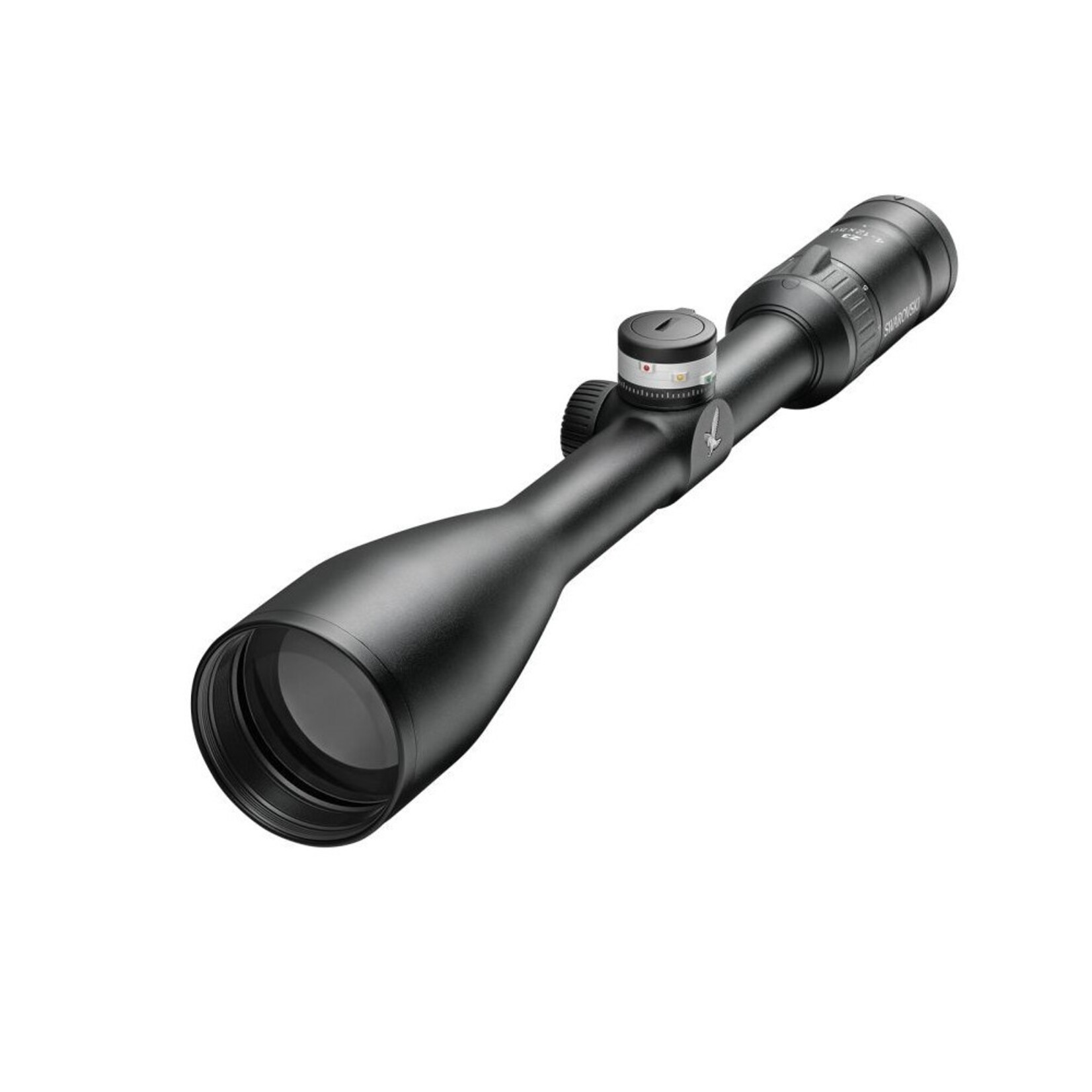

Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12x50 BT L is designed to cope with these values – even with an incredibly lightweight design. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.

HAVING YOUR TARGET IN SIGHT
The impressive features of the 1-inch range with a 3x zoom include not only its tried-and-true optical system, but also the slim, lightweight design – suitable for any hunting firearm.

SLIM YET NIG ON DETAIL
High-light gathering 50-mm objective lens - 12x magnification for more detail - Slim and rugged

Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12x50 BT L is designed to cope with these values – even with an incredibly lightweight design. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.

Mount-Type: Ring-Mount Ring-Mount

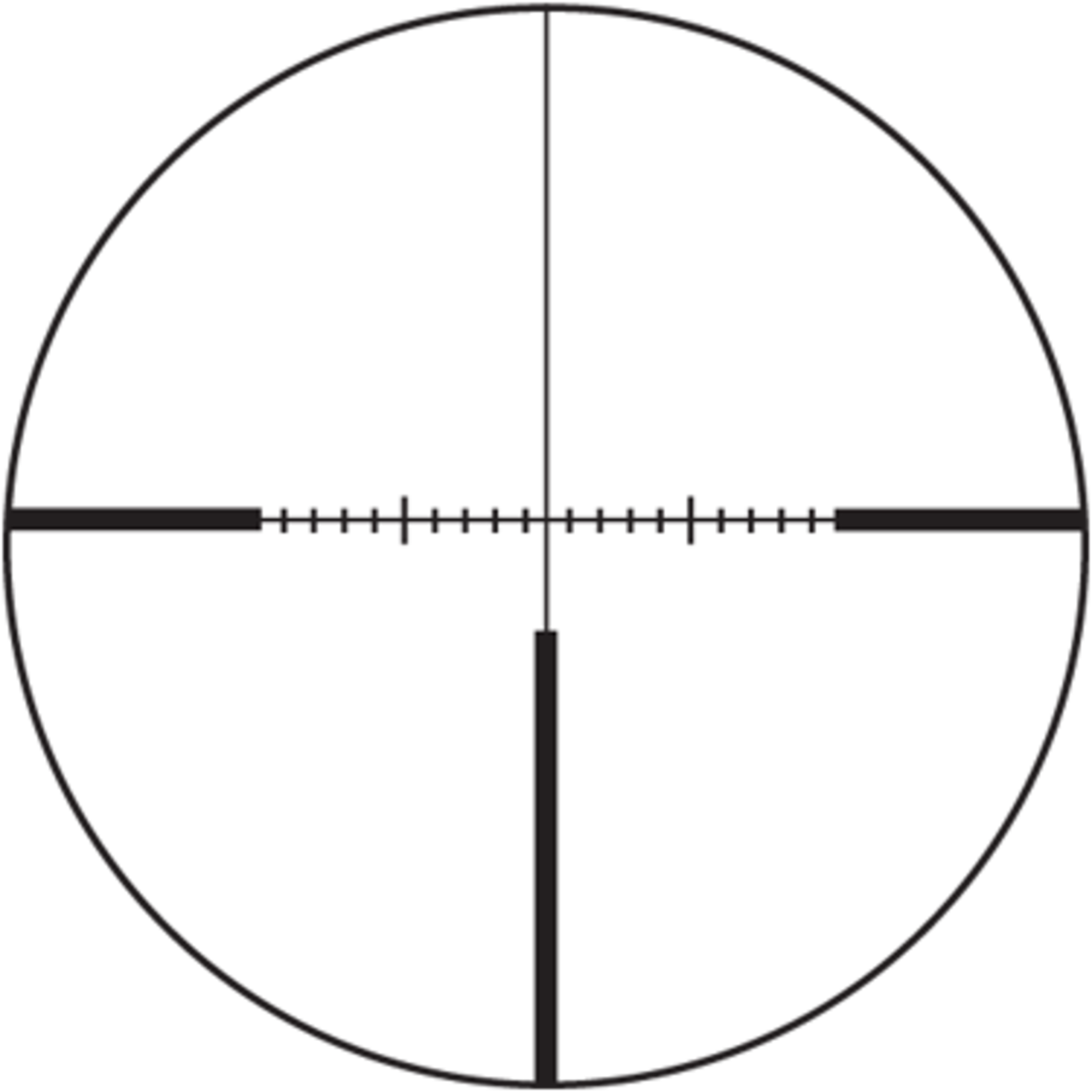

Reticle: 4W

OBJECTIVE
Magnification 4-12x
Effective Objective Lens Diameter 50 mm
Exit Pupil Diameter 12.5-4.2 mm
Exit Pupil Distance 90 mm
Field of View at 100 Yds/ 100 m 29.1-9.9 ft/100 yds
Field of View Degrees 5.5-1.9 °
Field of View Apparent 22.7 °
Diopter Adjustment -2.5 to +2.5 dpt
Light Transmission 90 %
Twilight Factor Acc. to Iso 14132-1 10.6-24.5

MEASUREMENT
Impact Point Correction Per Click 0.25 / 7
Max. Elevation / Windage Adjustment Range 43 / 1.2

DIGITAL
Objective Filter Thread M 52x0.75

SIZE & WEIGHT
Length 13.78 in
Weight 14.5 oz
Central Tube Diameter 1 in

ENVIRONMENT & CONDITIONS
Functional Temperature -4 to +131 °F
Storage Temperature -22 to +158 °F
Submersion Tightness 13 ft / 4 m water depth (inert gas filling)
